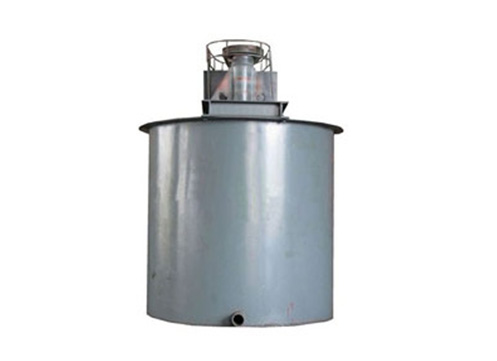

Agitating Vessel stirs the barrel for the mineral product and also known as Stirring Trough. It's suitable for each kind of metalliferous ore. It mainly uses in front of flotation process stirring, causes the medicament and the pulp intensive mixing, also may use in other on-metallic minerals stirring.
The impeller, drived by motor vee belt, makes the medicament mix well with the ore pulp, which increases the time of the response of the medicament, strengthens the quality and completes the process of blending.
Rapid and evenly agitating, simply operation and easy maintenance.
| Inner Size Of Bucket | Effective Volume | Blender | Motor | Overall Dimension | Weight | ||||
| Diameter | Height | Impeller | Impeller | Model | Power | Height | Max Length | ||
| Diameter | Speed | ||||||||
| mm | mm | m2 | mm | r/m | Kw | mm | mm | Kg | |
| 750 | 750 | 0.26 | 240 | 530 | Y90L-4 | 1.5 | 1241 | 939 | 228 |
| 1000 | 1000 | 0.58 | 240 | 530 | Y100L-6 | 2.2 | 1665 | 1300 | 658 |
| 1200 | 1200 | 3.6 | 300 | 480 | Y100L-6 | 3 | 1800 | 1420 | 760 |
| 1500 | 1500 | 2.2 | 400 | 320 | Y132S-6 | 3 | 2386 | 1690 | 861 |
| 2000 | 2000 | 5.46 | 550 | 230 | Y132M2-6 | 4 | 3046 | 2381 | 1240 |
| 2500 | 2500 | 11.2 | 625 | 230 | Y160M-6 | 7.5 | 3546 | 2881 | 3462 |
| 3000 | 3000 | 19.1 | 700 | 210 | Y200L-6 | 22 | 4325 | 3266 | 4296 |
