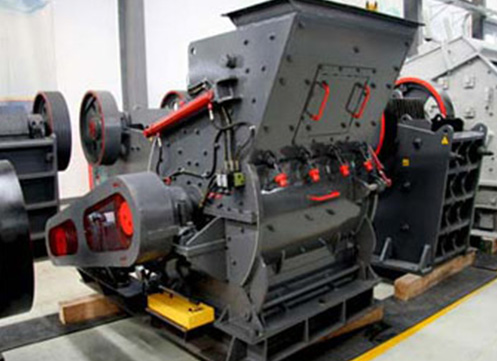

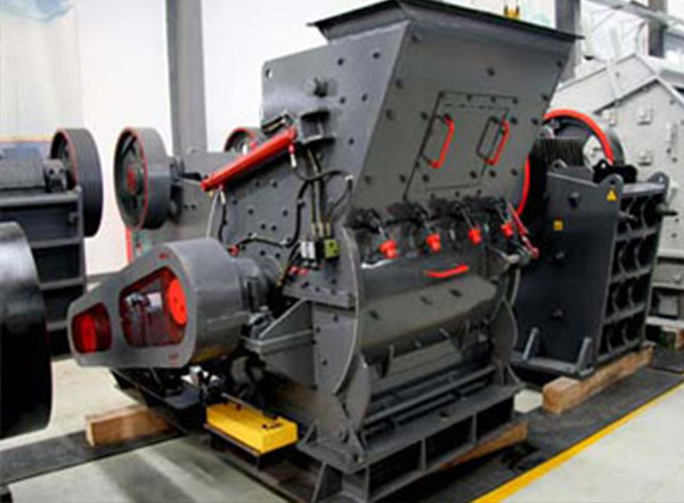

Hammer Crusher can be used to crush the medium hardness and weak corrode materials in dry and wet state such as coal ,gypsum, salt, tile ,lime etc .And it is widely used in mining ,cement ,metallurgy ,coal ,construction ,railway,chemical etc industries .
Hammer Crusher can be used to crush the materials ,replying on the impact force. The materials entered into the hammer Crusher can be crushed when meeting the impact force of the high-speed rotating hammer .Under the kinetic energy effect from the hammer ,the finished materials rush in high speed towards baffle and sieve .At the same time ,the materials strike each other .Then after times of crushing ,the materials which granularity is less than the sieve gap can be discharged .However, the bigger ones will experience anther times of impacting ,grinding ,squeezing to be crushed and discharged .
Send E-mail:
sales@daiwomining.com
1.Simple structure ,large crushing ratio, high –efficiency.
2.Can be change the discharging granularity by adjusting the gap.
3.Wear resisting and anti-impacting hammer ,easy usage and convenient maintenance .
| Specification | Rotor diameter (mm) |
Rotor length (mm) |
Rotate speed (r/min) |
Feed granularity (mm) |
Discharge granularity (mm) |
Capacity (t/h) |
Electronic power (Kw) |
Overall size (L*H*W) (mm) |
Weight (t) |
| PC400*300 | 400 | 300 | 1200 | ≤80 | ≤10 | 5-8 | 11 | 812*982*758 | 0.7 |
| PC600*400 | 600 | 400 | 1000 | ≤100 | ≤15 | 10-15 | 18.5 | 1200*1114 *1114 | 1.5 |
| PC800*600 | 800 | 600 | 980 | ≤120 | ≤15 | 20-25 | 45 | 2620*1684 *1340 | 3.7 |
| PC1000*800 | 1000 | 800 | 980 | ≤200 | ≤45 | 34-54 | 115 | 3574*2250 *1515 | 6.5 |
