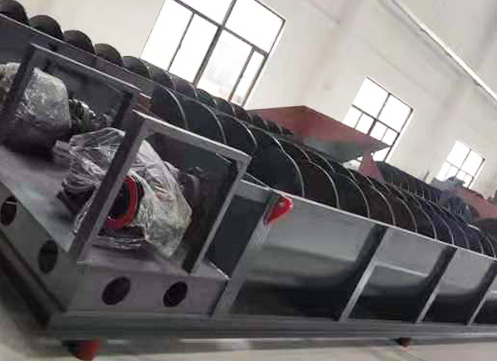

This series screw washing machine is mainly used for washing material after crushing. Small particles suspend in water flow out through outlet. Coarse particles sink down to bottom of groove and they will be pushed to the discharging end by the screw.
Mechanism sand, bituminous concrete, metal mine, aggregates shaping.
| Model | Motor power | Water consumption (t/h) | Screw dia (mm) | Capacity (t/h) |
| ZXL-500 | 7.5 | 6-60 | 500 | 20 |
| ZXL-750 | 11 | 9-63 | 750 | 75 |
| ZXL-1000 | 18.5 | 10-80 | 1000 | 100 |
| ZXL-1200 | 22 | 13-168 | 1200 | 175 |
| 2ZXL-1200 | 2×22 | 60-600 | 1200 | 350 |
| ZXL -1500 | 30 | 20-240 | 1500 | 500 |
| 2ZXL-1500 | 2×30 | 60-600 | 1500 | 900 |
| ZXL-2000 | 45 | 100-800 | 2000 | 750 |
