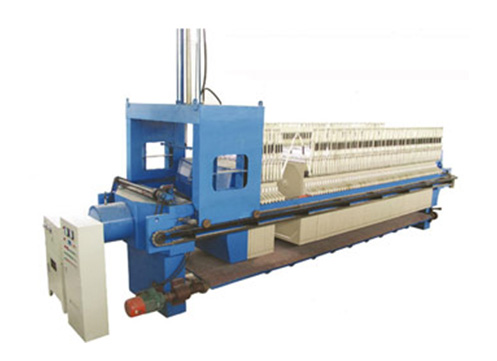

The frame is optimization design, high quality carbon steel compound and mechanical cleaning ST2 stage;
The Filter plates use TPE elastomer non-alkali fiberglass polypropylene, so they are both reinforced polypropylene toughness and hardness and rubber diaphragm flexibility.
The frame is optimization design, high quality carbon steel compound and mechanical cleaning ST2 stage;
The Filter plates use TPE elastomer non-alkali fiberglass polypropylene, so they are both reinforced polypropylene toughness and hardness and rubber diaphragm flexibility. It is not easy to fall off and long service life.(Corrosion resistance, acid & alkali resistance, salt resistance, avirulent and tasteless, heat resistance <100 ℃) Its stand pressure force is 30 Mpa while filtration pressure can reach 1.2 Mpa.
The hydraulic system of oil tank uses fine boring sealing tube, and the accuracy can reached IT7 grade; The automatic plate pull and discharge system adopts frequency conversion double speed motor, tooth chain, and conveyor chain drive, manipulator pull plate and PLC control, so it can automatically control.
The liquid material slurry goes into the material tank, store to a certain time, the filter press can work.
Firstly start hydraulic system, to filter press for pressure, the hydraulic system will stop automatically when pressure increase the setted pressure, and open the feed pump and feed pipe valves automatically to send the slurry into the filter press.
After filted by the nylon cloth, the particles are stay in the filter and the liquid will go to the tank. When the particle is full in filter press, the feed pump stop working and feed line valve is closed. The open blowback air valve starts, to blow some water away and the press system begin to work to press the water inside the particles, to make the left water away again. When the procedure finished, the diaphragm plate inside press water is loose, the pressure plate is back to limit place; the discharge parts opens and the belt conveyor to run automatically. The total procedure is finished.
| Type | Filter Area(m2) | Pallet Size (mm) |
Cake thickness (mm) |
Filtering Volume (L) |
Pallet Qty (pcs) |
Filter Pressure (Mpa) |
Power (Kw) |
Weight (Kg) |
Dimension (mm) |
| XZ80/1000 | 80 | 1000*1000 | 30 | 1219 | 46 | 0.6 | 4 | 5651 | 4500*1500*1400 |
| XZ100/1000 | 100 | 1505 | 57 | 6628 | 5150*1500*1400 | ||||
| XZ120/1000 | 120 | 1816 | 69 | 7644 | 5870*1500*1400 | ||||
| XZ100/1250 | 100 | 1250*1250 | 1478 | 36 | 0.6 | 4 | 8307 | 4800*1850*1600 | |
| XZ120/1250 | 120 | 1765 | 43 | 9308 | 5270*1850*1600 | ||||
| XZ140/1250 | 140 | 2094 | 51 | 10455 | 5770*1850*1600 | ||||
| XZ160/1250 | 160 | 2381 | 58 | 11492 | 6350*1850*1600 | ||||
| XZ180/1250 | 180 | 2669 | 65 | 12494 | 6810*1850*1600 | ||||
| XZ200/1250 | 200 | 2965 | 72 | 13504 | 7200*1850*1600 | ||||
| XZ220/1250 | 220 | 3285 | 80 | 14652 | 7800*1850*1600 | ||||
| XZ250/1250 | 250 | 3737 | 91 | 16227 | 8500*1850*1600 |
