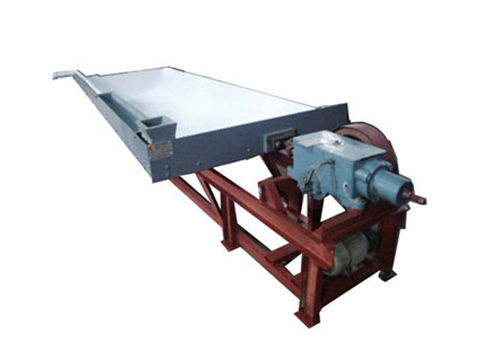

Shaking Table

Description:

Shaking Table is also called 6S Shaking Table, Concentrating Tables,Gravity Shaker and wilfley shaking table.
Concentrating Tables are designed to wet gravity-based separation of minerals and other granular materials.

Inquiry Now Send E-mail

Description

Shaking Table is also called 6S Shaking Table, Concentrating Tables,Gravity Shaker and wilfley shaking table.

Concentrating Tables are designed to wet gravity-based separation of minerals and other granular materials.

There are many applications where the concentrating table is of particular value and cannot be equaled for economical and efficient performance. They are effective in processing precious and base metal, rare metal and non-metallic minerals.

The Shaking Tables have three distinct deck designs available. The course ore deck is designed for recovering particles sized from 0.5 mm to 2 mm; the fine sand deck is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm; the slime deck is designed for recovering super extremely fine particles in the range of 0.05 mm to 0.074 mm

Technical Parameter:

Name	Unit	Coarse Sand Table	Fine Sand Table	Slimer
Table Size	Length	mm	4450	4450
	Driving Part Width	mm	1855	1855
	Concentrating End Width	mm	1546	1546
Max Feed Size	mm	2	0.5	0.15
Capacity	T/d	30-60	10-20	15-25
Feeding Concentration	%	25-30	20-25	15-25
Distance	mm	16-22	11-16	8-16
Frequency	F	15-48	48-53	50-57
Table-board	T/d	80-150	30-60	10-17
Water Quantity	T/d	80-150	30-60	10-17
Transverse Slope		2.5-4.5	1.5-3.5	1-2
Longitudinal Gradient	%	1.4	0.92	----
Table-Board Tip		32-42	40	42
Extinguish Angle		32-42	40	42
Beneficiation Area	----	7.6	7.6	7.6
Table-Board	----	2.6	2.6	2.6
Length Ratio	----	2.6	2.6	2.6
Motor Power	Kw	1.1	1.1	1.1
